The Technology Behind Sewer Camera Inspections

Modern sewer inspection cameras are marvels of engineering, incorporating several key components:

• High-Resolution Camera: Capable of capturing clear, detailed images of pipe interiors.
• Flexible Rod: Allows the camera to navigate through pipes and around bends.
• LED Lighting: Illuminates the pipe interior for clear visibility.
• Transmitter: Sends a signal to locate the camera’s position from above ground.
• Recording Device: Captures video and images for later analysis and documentation.

Benefits of Sewer Camera Inspections: Why Visual Diagnosis Matters

Implementing camera inspections for sewer lines offers numerous advantages:

• Accurate Diagnosis: Pinpoint the exact location and nature of sewer line issues.
• Non-Destructive: No need for exploratory digging or landscape disruption.
• Cost-Effective: Identify problems early, preventing costly emergency repairs.
• Comprehensive Assessment: Evaluate the overall condition of your sewer system.
• Documentation: Provide visual evidence for insurance claims or real estate transactions.
• Preventative Maintenance: Detect potential issues before they become major problems.

The Sewer Camera Inspection Process: A Step-by-Step Guide

1. Initial Assessment: The plumber evaluates your property and locates access points to the sewer system.
2. Camera Insertion: The sewer inspection equipment is carefully inserted into the pipe through an existing access point or cleanout.
3. Video Capture: As the camera moves through the pipe, it captures high-resolution video of the interior.
4. Real-Time Analysis: The technician monitors the live feed, identifying any issues or areas of concern.
5. Location Marking: Using the transmitter, problem areas are precisely located and marked above ground.
6. Documentation: The entire inspection is recorded for further analysis and future reference.
7. Results Review: The technician explains the findings and recommends appropriate actions if necessary.

Advanced Applications of Sewer Camera Technology

Modern sewer inspection cameras are not just for identifying problems. They have several advanced applications:

• Pre-Purchase Home Inspections: Evaluate sewer line condition before buying a property.
• Post-Repair Verification: Confirm the quality and completeness of sewer line repairs.
• Preventative Maintenance Planning: Schedule cleaning or maintenance based on actual pipe conditions.
• Mapping Underground Systems: Create accurate maps of complex sewer networks.
• Locating Lost Items: Retrieve valuable items accidentally flushed down drains.

When to Schedule a Sewer Camera Inspection

Consider booking a professional sewer line inspection in the following scenarios:

• Before purchasing a home, especially if the property is over 20 years old
• When experiencing recurring drain backups or slow drains
• If you detect foul odors emanating from drains or your yard
• Before undertaking major landscaping or home renovation projects
• As part of routine maintenance every 2-3 years

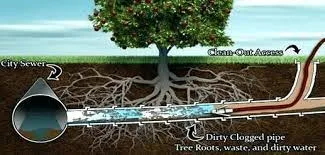

• If your property has mature trees near sewer line paths
• After experiencing ground settling or earthquakes in your area

Interpreting Sewer Camera Inspection Results

Understanding the results of your sewer video inspection is crucial for making informed decisions about your plumbing system:

Observation	Potential Issue	Recommended Action
Roots visible inside pipe	Root intrusion	Professional cleaning, possible pipe lining or replacement
Pipe walls appear rough or pitted	Corrosion	Monitor closely, consider pipe replacement if severe
Visible cracks or holes	Pipe damage	Immediate repair or replacement to prevent leaks
Misaligned pipe sections	Joint failure or ground settling	Realignment or repair to prevent blockages and leaks
Standing water in pipe	Bellied or sagging pipe	Pipe replacement or relining to restore proper flow

Understanding the power of sewer camera inspections empowers homeowners to take a proactive approach to plumbing maintenance. By leveraging this advanced technology, you can ensure the longevity and efficiency of your sewer system, potentially saving thousands in emergency repairs and property damage.

The Science Behind Pipe Bursting Technology

Pipe bursting technology relies on several key components:

• Bursting Head: A cone-shaped tool that fractures the existing pipe.
• Pulling Rod: Guides the bursting head through the old pipe.
• Hydraulic or Pneumatic Power: Provides the force necessary for the bursting process.
• New Pipe: Typically made of high-density polyethylene (HDPE) or other durable materials.
• Entry and Exit Pits: Small excavations for accessing the pipe system.

Benefits of Pipe Bursting: Why It’s Gaining Popularity

The adoption of pipe bursting for sewer lines and water mains offers numerous advantages:

• Minimal Surface Disruption: Significantly reduces the need for extensive digging and landscaping restoration.
• Cost-Effective: Often more economical than traditional open-trench methods, especially in urban areas.
• Time-Efficient: Can complete pipe replacements much faster than conventional techniques.
• Upsizing Capability: Allows for installation of larger diameter pipes to increase flow capacity.
• Long-Term Solution: New pipes installed via bursting often have a lifespan of 50-100 years.
• Environmentally Friendly: Reduces carbon footprint associated with heavy machinery and restoration work.

The Pipe Bursting Process: Step-by-Step Guide

1. Site Evaluation: Assess the existing pipe condition and surrounding soil.
2. Planning: Determine entry and exit points, and plan the bursting path.
3. Excavation: Create small entry and exit pits at the ends of the pipe section.
4. Pipe Preparation: Clean and inspect the existing pipe to ensure smooth bursting.
5. Bursting Head Insertion: Insert the bursting head and new pipe into the entry pit.
6. Pipe Bursting: Use hydraulic or pneumatic power to pull the bursting head through, fracturing the old pipe and pulling in the new one.
7. Connection: Connect the new pipe to the existing system at both ends.
8. Testing: Conduct pressure tests to ensure the integrity of the new pipe.
9. Site Restoration: Fill in entry and exit pits and restore the surface.

Pipe Bursting vs. Traditional Trenching: A Comparison

Factor	Pipe Bursting	Traditional Trenching
Surface Disruption	Minimal (entry and exit pits only)	Extensive excavation required
Project Duration	Generally faster (days)	Longer duration (weeks)
Cost	Often lower, especially in finished areas	Higher due to restoration costs
Environmental Impact	Lower carbon footprint	Higher impact due to heavy machinery
Pipe Upsizing	Easily accommodated	Requires wider trenching

Limitations and Considerations for Pipe Bursting

While highly effective, pipe bursting services may not be suitable in all situations:

• Soil Conditions: Very rocky soil or expansive clay can complicate the bursting process.
• Nearby Utilities: Pipes in close proximity to other utility lines may not be suitable for bursting.
• Pipe Material: Some materials, like ductile iron, can be challenging to burst.
• Severe Pipe Damage: Collapsed or severely deformed pipes may require traditional excavation.
• Local Regulations: Some municipalities may have restrictions on trenchless methods.

Preparing for a Pipe Bursting Project

If you’re considering pipe bursting for pipe replacement, here are key steps to prepare:

1. Video Inspection: Conduct a thorough camera inspection of the existing pipe.
2. Soil Analysis: Assess soil conditions to ensure suitability for bursting.
3. Utility Mapping: Locate and mark all nearby utility lines.
4. Permitting: Obtain necessary permits and approvals from local authorities.
5. Temporary Service: Arrange for temporary water or sewer service during the replacement.
6. Clear Access: Ensure clear access to entry and exit pit locations.

Understanding the capabilities and benefits of pipe bursting technology empowers property owners to make informed decisions about their plumbing infrastructure. This innovative method offers a less disruptive, more efficient alternative to traditional pipe replacement, potentially saving time, money, and environmental resources.

When is Sewer Excavation Necessary?

Several scenarios may require excavation for sewer repair:

• Severe Pipe Collapse: When pipes are too damaged for trenchless repair methods.
• Extensive Root Intrusion: In cases where roots have caused significant damage to large sections of pipe.
• Misaligned Pipes: Correcting severe pipe misalignment often requires excavation.
• Outdated Materials: Replacing pipes made of hazardous or obsolete materials (e.g., lead or Orangeburg pipes).
• Major System Upgrades: When increasing capacity or rerouting the sewer system.
• Soil Issues: Addressing problems caused by soil settlement or erosion around pipes.

The Sewer Excavation Process: Step-by-Step Guide

1. Site Assessment: Thorough evaluation of the property and sewer system layout.
2. Utility Locating: Identifying and marking all underground utilities to ensure safety.
3. Excavation Planning: Determining the optimal excavation path and method.
4. Surface Preparation: Protecting or removing landscaping and hardscaping elements.
5. Digging: Carefully exposing the sewer line using appropriate equipment.
6. Pipe Repair or Replacement: Addressing the underlying sewer issue.
7. Backfilling: Properly filling the excavated area to prevent future settling.
8. Site Restoration: Restoring the excavated area to its original condition.
9. Final Inspection: Ensuring the repair is successful and the site is properly restored.

Advanced Excavation Techniques in Modern Sewer Services

Today’s sewer excavation contractors employ various advanced techniques to minimize disruption and improve efficiency:

• Hydro Excavation: Using high-pressure water to break up soil, then vacuuming it away.
• Vacuum Excavation: Employing powerful suction to remove soil with minimal disturbance.
• Mini Excavators: Utilizing compact machinery for precision digging in tight spaces.
• Trench Boxes: Implementing safety systems to allow for deeper, safer excavations.
• GPS-Guided Equipment: Ensuring precise excavation and minimizing accidental utility strikes.

Sewer Excavation vs. Trenchless Methods: A Comparison

Factor	Sewer Excavation	Trenchless Methods
Invasiveness	More invasive, requires digging	Minimally invasive, limited digging
Visual Inspection	Direct visual access to pipes	Relies on camera inspections
Ability to Handle Severe Damage	Can address any level of damage	Limited in cases of severe collapse
Impact on Landscape	Significant, requires restoration	Minimal impact on surface area
Cost	Can be higher due to restoration	Often more cost-effective
Project Duration	Typically longer	Usually faster to complete

Preparing Your Property for Sewer Excavation

If your property requires sewer excavation services, here are key steps to prepare:

1. Clear the Area: Remove any vehicles, outdoor furniture, or obstacles from the work zone.
2. Protect Valuables: Cover or relocate valuable plants or landscaping features.
3. Inform Neighbors: Notify nearby residents about the upcoming work.
4. Plan for Service Interruption: Prepare for temporary water or sewer service disruption.
5. Secure Permits: Ensure all necessary permits are obtained (often handled by the contractor).
6. Document Pre-Excavation Condition: Take photos of your property before work begins.

Environmental Considerations in Sewer Excavation

Excavation contractors must consider several environmental factors:

• Soil Contamination: Properly handling and disposing of potentially contaminated soil.
• Groundwater Protection: Implementing measures to prevent contamination of groundwater.
• Erosion Control: Using techniques to minimize soil erosion during and after excavation.
• Habitat Preservation: Taking steps to protect local flora and fauna in the excavation area.
• Noise and Dust Management: Employing methods to reduce noise and control dust during operations.

Post-Excavation Care and Maintenance

After sewer line replacement or repair via excavation, proper care ensures long-term success:

• Allow excavated areas to settle naturally before full restoration.
• Monitor the area for any signs of unusual settling or water accumulation.
• Avoid planting trees or large shrubs directly over the repaired sewer line.
• Schedule regular sewer line inspections to catch any issues early.
• Keep detailed records of the excavation work for future reference.

Understanding the intricacies of sewer excavation is crucial for property owners facing significant sewer line issues. While often more invasive than trenchless methods, excavation remains a vital solution for complex sewer problems, offering thorough, long-lasting repairs and system upgrades.
